Q switch ND YAG tattoo removal, pigmentation removal machine Treatment principle for pigmented dermatosis of Q-Switched Nd: YAG Laser. The therapy system lies in selective photothermolysis with melanin as the chromophore.
Share:

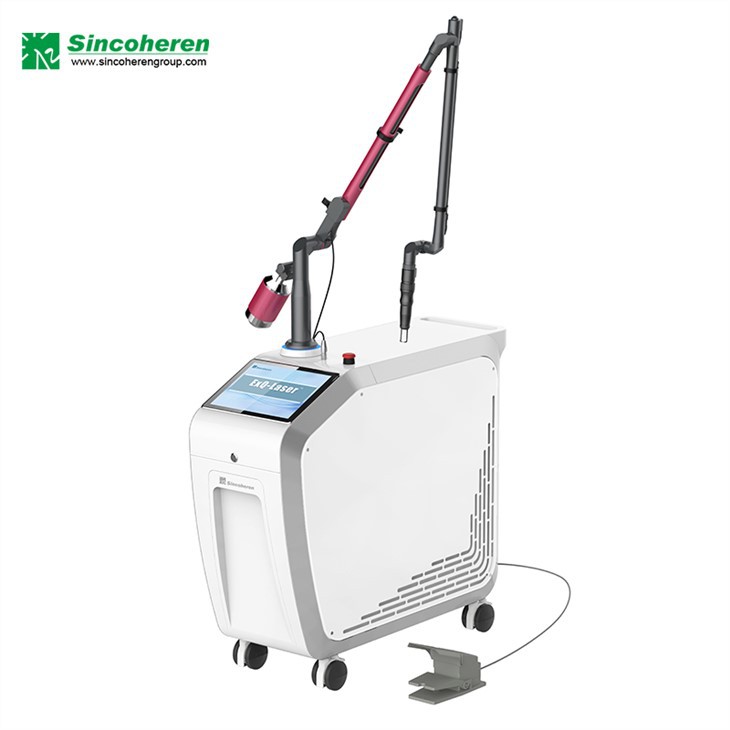

Q Switch ND YAG Tattoo Removal Machine
Treatment principle for pigmented dermatosis of Q-Switched Nd: YAG Laser. The therapy system lies in selective photothermolysis with melanin as the chromophore. Q-Switched Nd: YAG has higher peak power and nanoseconds-level pulse width. Melanin in melanophore and cuticle-formed cells have a short hot relaxation time. It could immediately make small selectively energy absorbed granules (tattoo pigment and melanin) blasts without injuring surrounded normal tissues. The blasted pigment granules will be excreted from the body through the circulatory system.
Indicates
1.Melasma/Hyperpigmentation/ lentiginos / Speckle/Tattoo Removal etc.
2.Port wine birthmarks /telangiectasias /Spider angioma /Cherry angioma Spider nevi etc.
3.Carbon peeling treatment
4.Skin rejuvenation /Balance uneven skin tones /Shrink pore
Specifications
| Laser type | Q-Switched Nd: YAG | High energy Q-switched Nd: YAG |
| Wavelength | 1064nm532nm | 1064nm532nm |
| Pulse width | 5ns5ns | 8ns8ns |
| Pulse energy | 500mJ500mJ | 1000mJ500mJ |
| Frequency | Frequency | 5Hz |
| Spot size | 2~10mm adjustable | 2~10mm adjustable |
| Fluence | 0.2~16J/cm²0.1~6.3J/cm² | 1.3~32J/cm²0.6~16J/cm² |
| Aiming beam | 635nm，<5mW | <5mW |
Detailed Images
Advantages
1.Double-lamp and double YAG rods with greater energy output.
2.Pulse width up to 5ns, higher peak power.
3.Accurate energy and real-time monitoring.
4.Flat-top beam output uniformly distributed spot energy.
5.1064/532nm wavelength automatic switching.

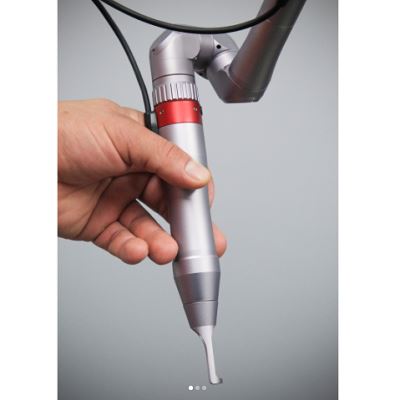

6.Korea imported light guide arm with adjustable spot handles, simultaneous changes in energy density.
7.Automatic water filtration system.

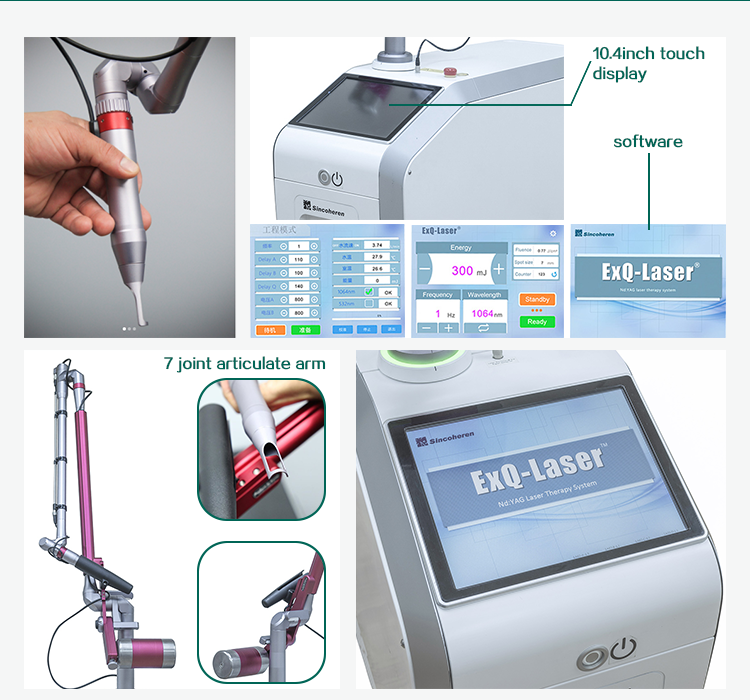

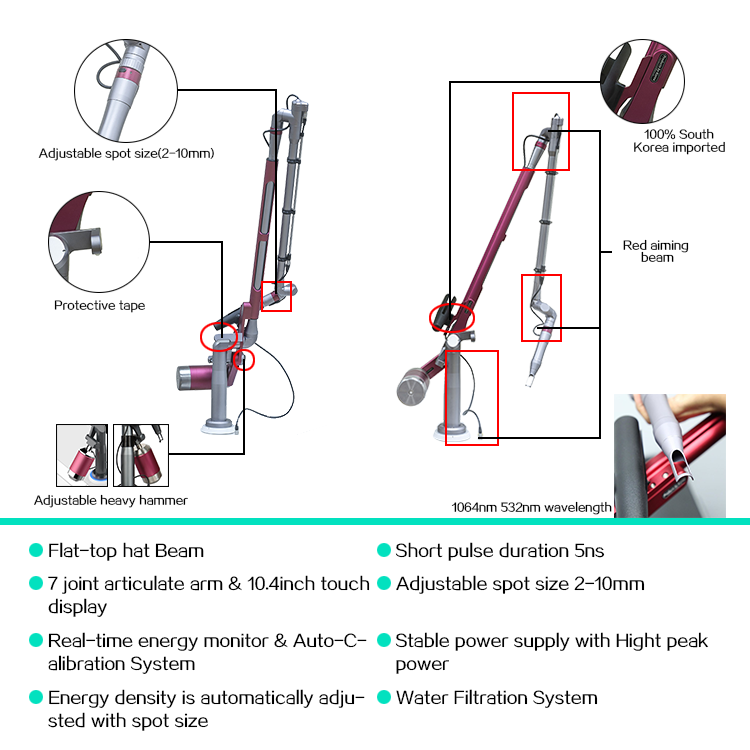

Advantages: 1.Flat-top hat Beam 2.7 joint articulate arm&10.4 touch display 3.Real-time energy monitor& Auto-Cali-bration System 4.Energy density is automatically adjustedwith spot size 5.Short pulse duration 5ns 6.Adjustable spot size 2-10mm 7.Stable power supply with High peak power 8.Water Filtration System 9.7*24 hour service/ Immediate help offered from the office located in The United States, Europe, and Australia. 10. 20 years of experience in Aesthetics equipment production and export. 11. Oem customized service, including software interface and body screen printing, color, etc. 12. Imported technologies and parts. Indications: 1.Melasma/HyperpigmenatonLentignos/Speckle/Tattoo Removal etc. 2.Carbon peeling skin rejuvenation 3.Port wine birthdaymarks/Spider angio-ma/Cherry angioma Spider nevi etc. Balance uneven skin tones/Shrink pores

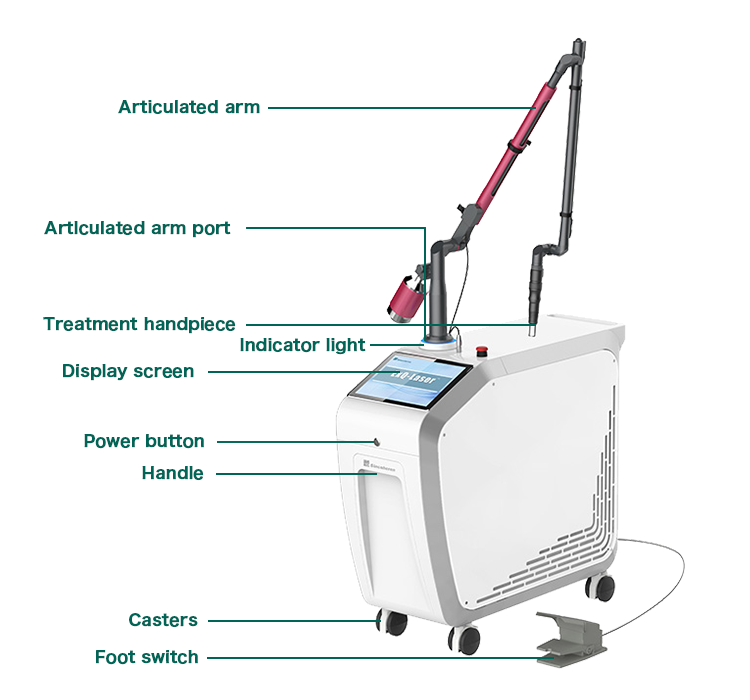

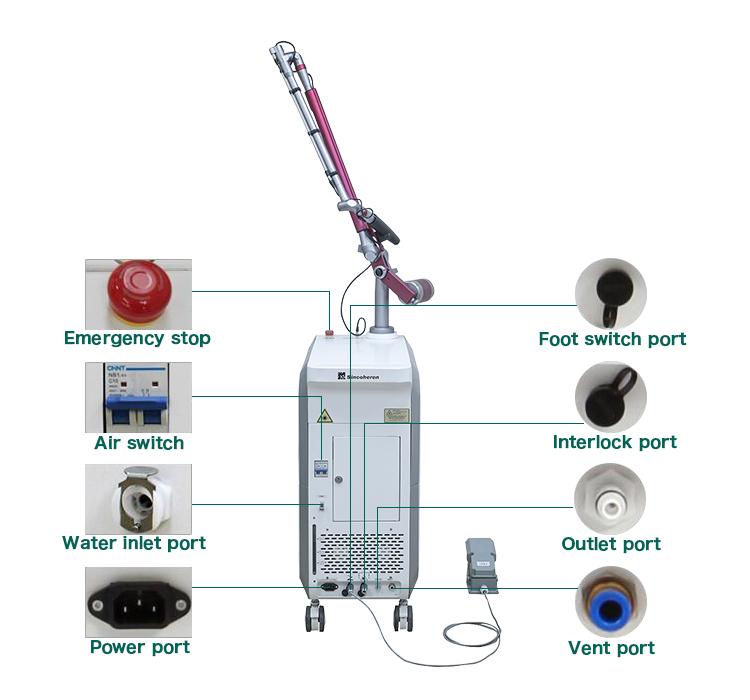

Product Description

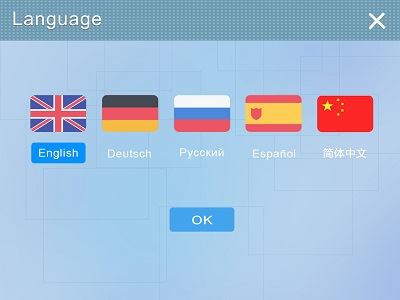

Sinco Q Switched is newly released Q-Switched Nd:YAG laser therapy system. It integrated with real-time energy monitor, energy auto-changing by adjustable handpiece, water filtration system, sufficiently guarantee the safety and efficiency during treatment. New UI designs focus on user experience which making the operation simpler and more convenient.
Laser type | Q-Switched Nd:YAG |
Wavelength | 1064nm 532nm |
Pulse width | 5ns 5ns |
Pulse energy | 500mj 200mj |
Pulse energy Range | 200-500mj 100-200mj |
Frequency | 5HZ |
Spot size | 2-10mm adjustable |
Electrical | 100-240VAC 50-60HZ 1200VA |
Dimension | 35.1cm*92.5cm*77.5cm |
Net weight | 40KG |

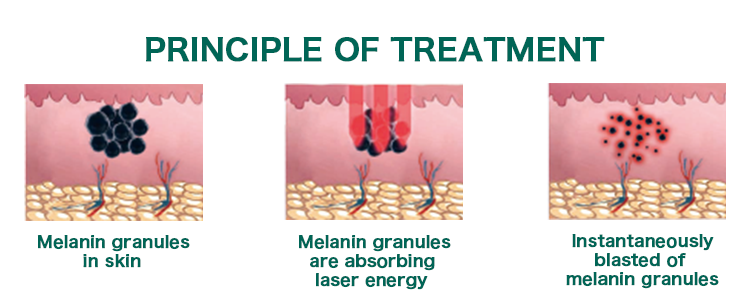

Working Principle

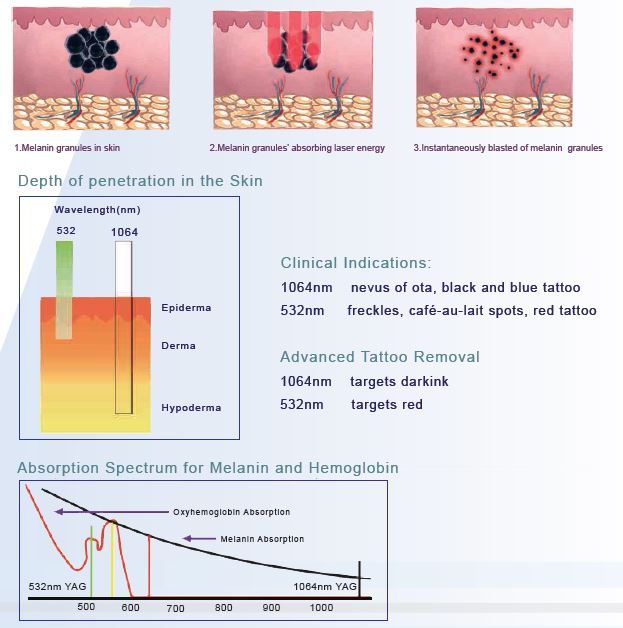

Treatment principle for pigmented dermatosis of Q-Switched Nd:YAG Laser Therapy system lies in selective photothermolysis with melanin as the chromophore. Q-Switched Nd:YAG has higher Peak power and nanoseconds-level pulse width. Melanin in melanophore and cuticle formed cells have a short hot relaxation time. It could immediately make small selectively energy absorbed granules (tattoo pigment and melanin) blast without injuring surrounded normal tissues. The blasted pigment granules will be excreted from body through circulatory system.
Efficacy
