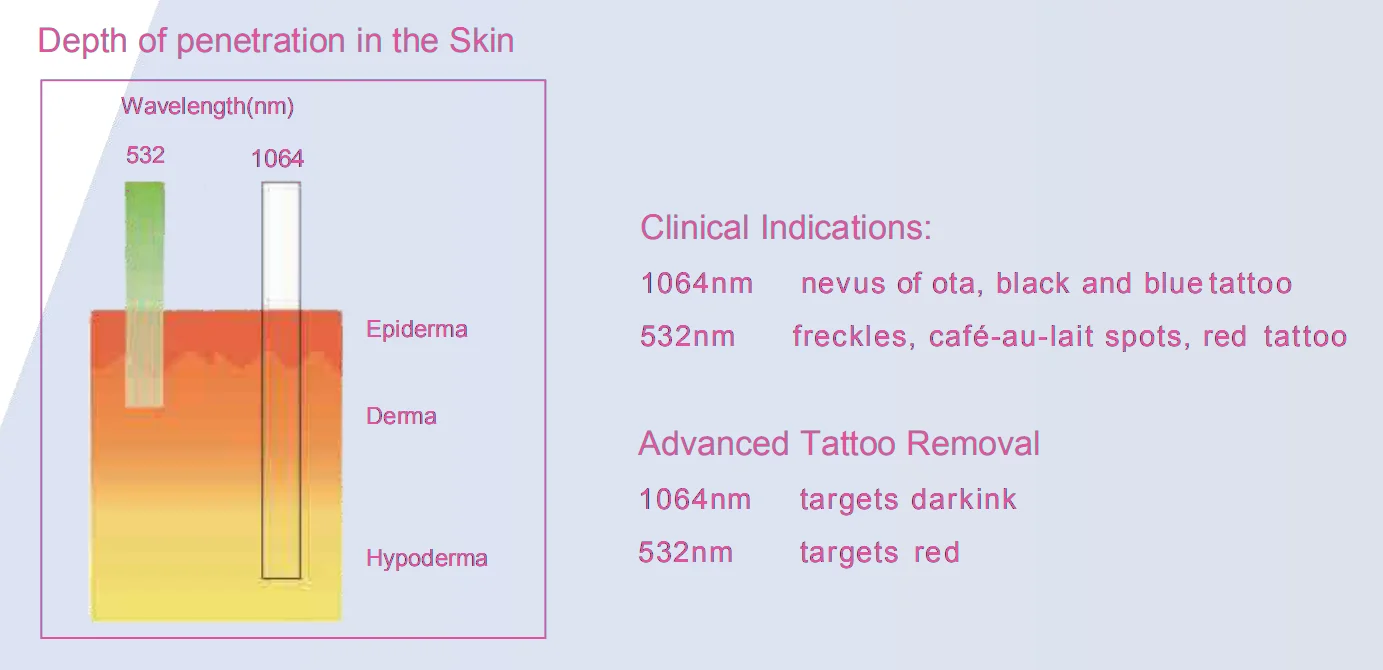

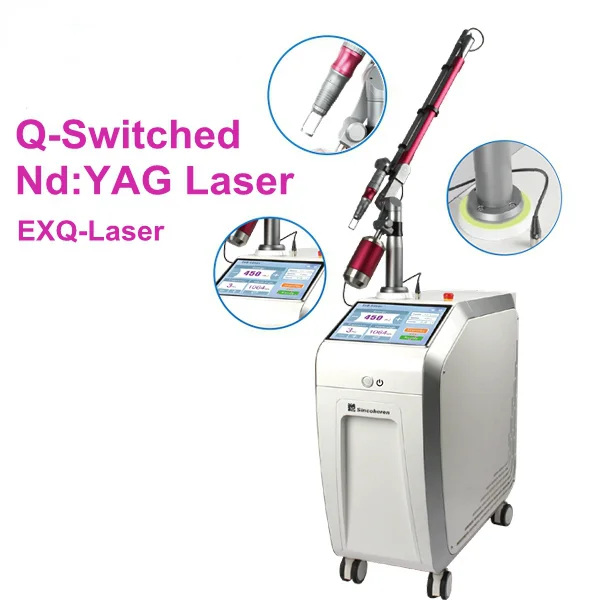

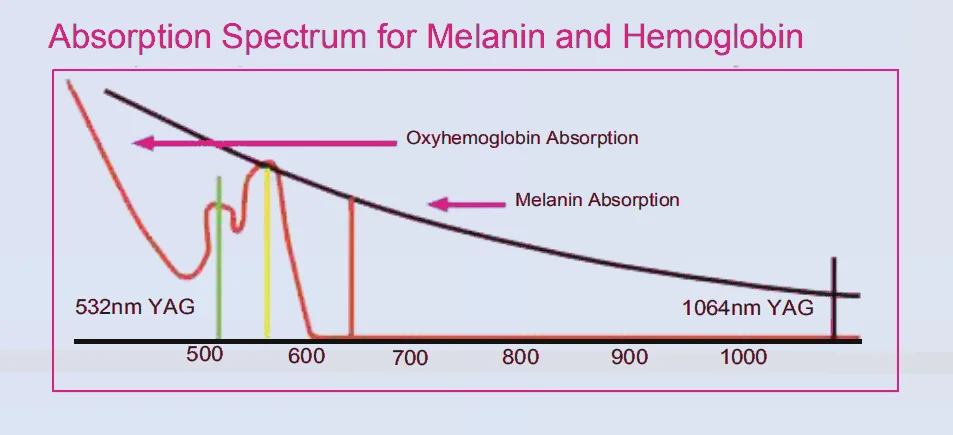

Treatment principle of Monaliza-2 Q-Switched Nd:YAG Laser Therapy System is based on laser selective photothermy and blasting mechanism of Q-switched laser.Energy from particular wavelength with accurate dose will act on certain targeted color radicals:ink,carbon particles from derma and epidermis,exogenous pigment particles and endogenous melanophore from derma and epidermis.When suddenly being heated,Pigment particles immediately blast into smaller pieces,
which will be swallowed by macrophage phagocytosis and enters into lymph circulation system and finally be discharged out of body.
Scope of application
1.Melasma/Hyperpigmenation/Lentiginos/Speckle/Tattoo Removal etc.
2.Carbon peeling skin rejuvenation
3.Port wine birthmarks/Spider angioma/Cherry angioma Spider nevi etc.
4.Balance uneven skin tones/Shrink pores
Clinical Cases
Advantage

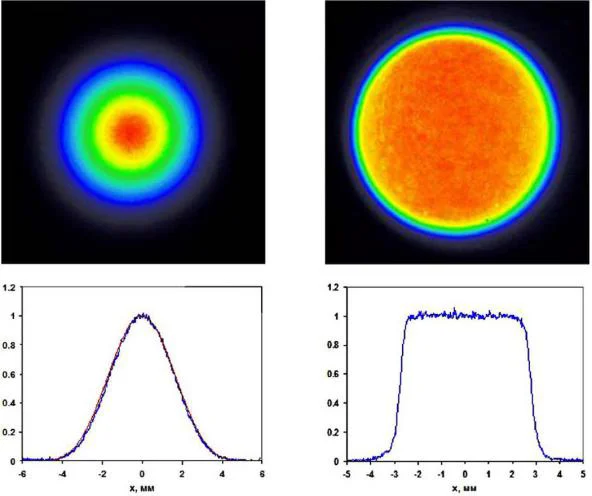

1.Flat-top beam output, uniformly distributed spot energy without any heat point, Achieve better treatment effect and less injuries.
2.7 joint articulate arm made in Korea

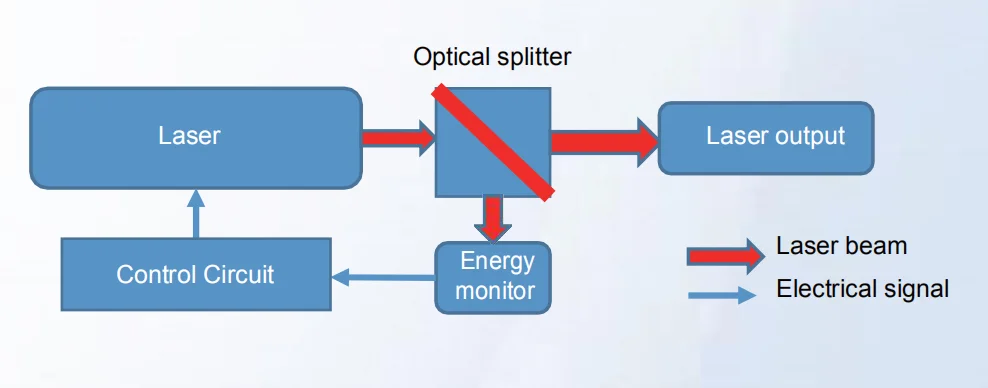

3.Integrated laser energy monitor system inside, set warning signal when energy deviation over threshold, all to ensure treatment effectiveness and safety.
4.Energy density is automatically adjusted with spot size.

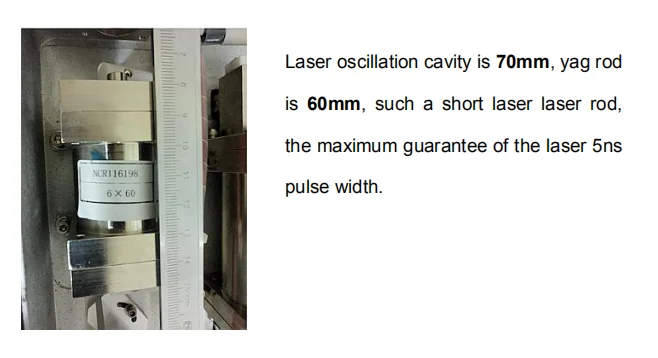

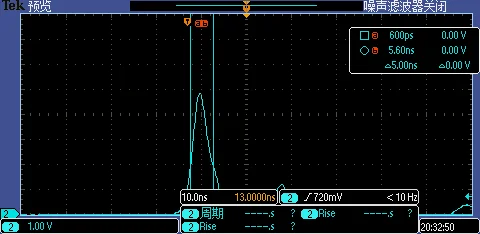

5.Short pulse duration 5ns

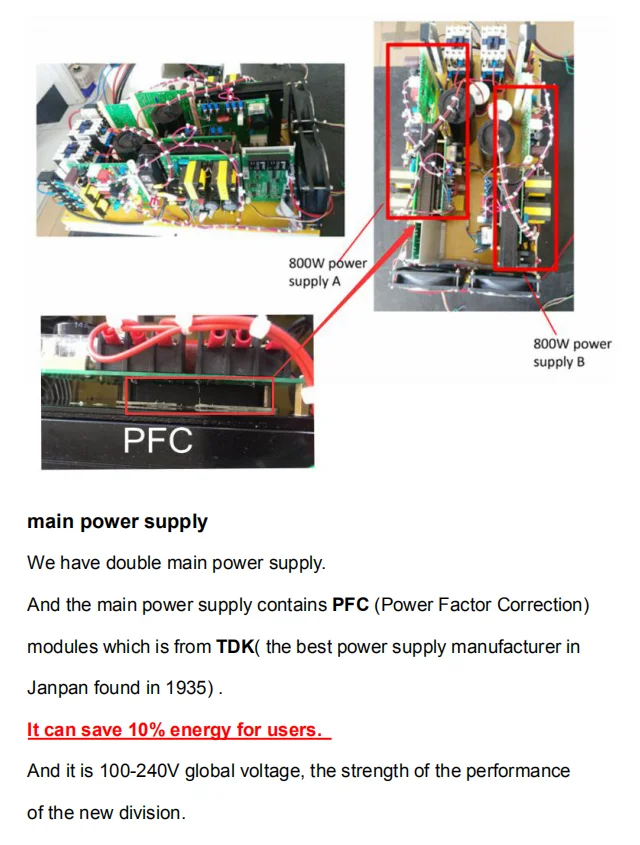

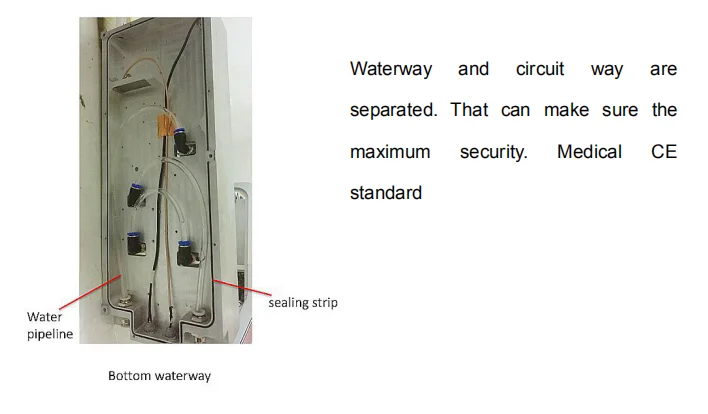

6.Modular internal construction

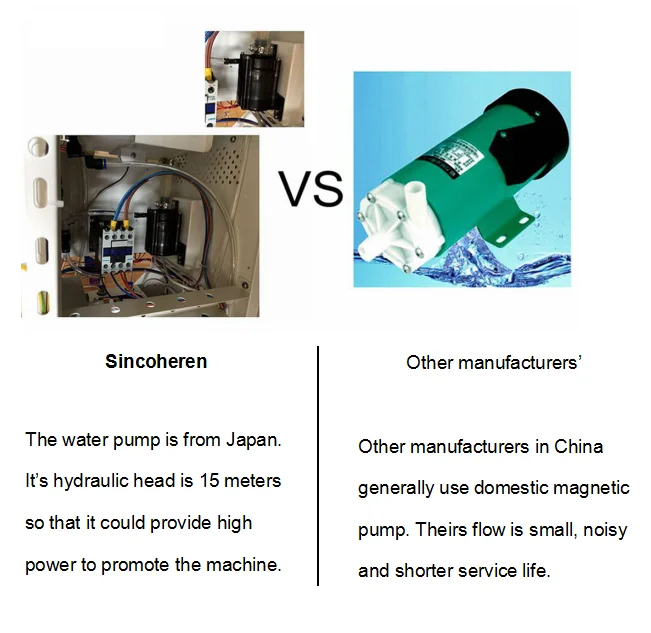

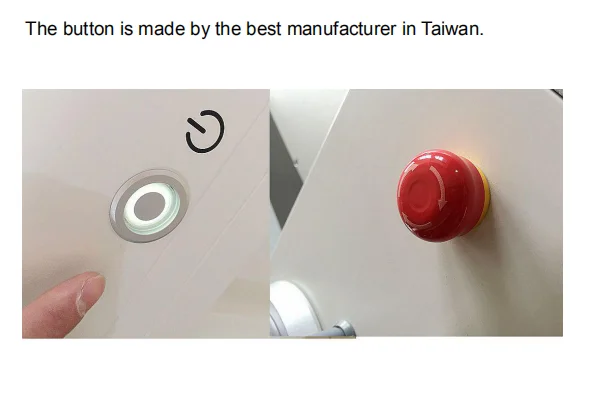

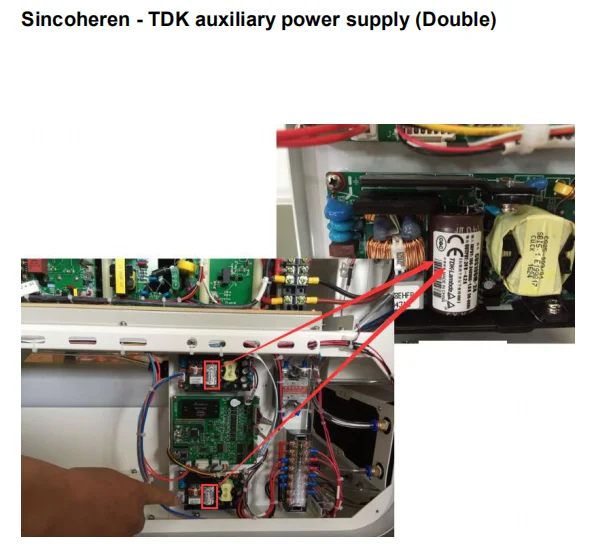

7.high quality internal parts

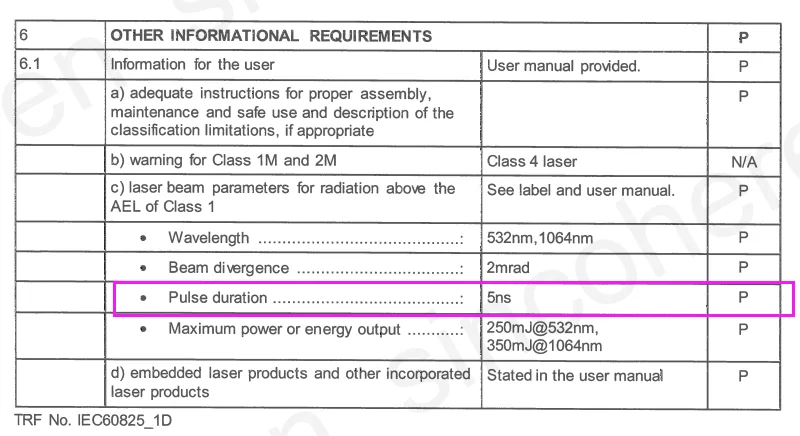

Specification
Laser type
Q-Switched Nd:YAG
Wavelength
1064nm
532nm
Pulse width
5ns
5ns
Pulse energy
500mJ
200mJ
Fluence
0.2-16J/cm2
0.1-6.3J/cm2
Spot size
2-10mm adjustable
Frequency
5Hz
Aiming beam
635nm,<5mW
Electrical requirements
100-240VAC 50-60Hz 1200VA
Dimension
351*925*775mm(without optical articulated arm)
Net Weight
40KG

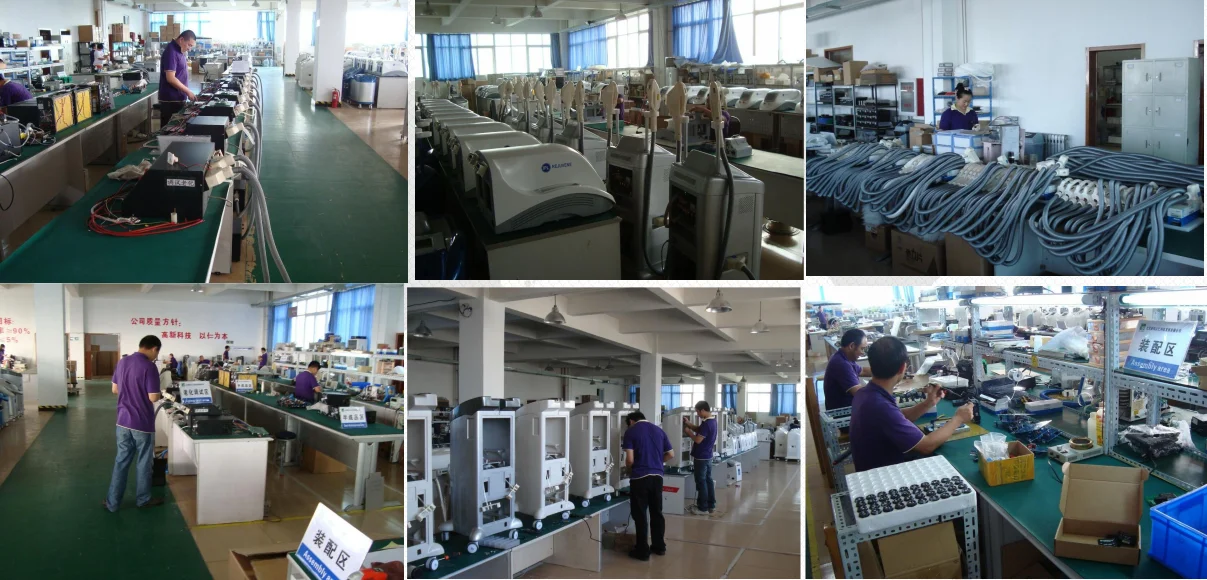

Company Profile
Established in 1999, Beijing Sincoheren S&T Development co.,Ltd. is a professional high-tech manufacturer of medical and aesthetic equipments. We supply Intense Pulse Light (IPL) Laser machine, CO2 Laser machine, 808nm diode Laser machine, Q-Switched ND:YAG Laser machine, cyrolipolysis machine, body slimming RF machine, etc. We have our own Research & Development Department, Factory, International Sales Department, Overseas Distributors and After-sales Department. We have three branches globally and Service-Department in Australian, USA and Germany. We have achieved Medical CE ,TGA,CFDA & ISO 13485 certificates.We also
provide OEM and ODM services based on clients’ desires.
