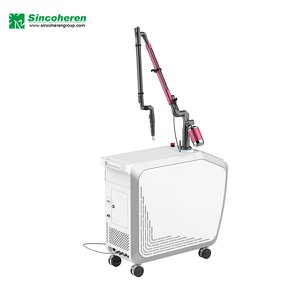

Name: Pico Tattoo Removal Machines Q-switch Nd Yag Laser Tattoo Removal Instrument
Brand: Sincoheren
SKU: 167669345

Product Details

Product Description

The working interface shows the related working parameters, include Energy, Frequency, Wavelength, Spot size which could be adjusted and fluence and counter which are only indicated. The surgeon and operators could set the parameters according to the skin symptoms and clinical requirements. ⚫ Energy: the output energy at the end of the handpiece. The range of energy is different according to the work mode. It is suggested that set the proper energy according to clinical symptoms. Press the button and to adjust the energy. ⚫ Frequency: The laser output frequency, it could be set from 1~10Hz, step is 1Hz. It is suggested that set the proper frequency according to clinical symptoms, press the button and below could decrease and increase the frequency. ⚫ Wavelength: laser output wavelength. The system could change the wavelength between 1064nm and 532nm. The different wavelength is used for the different Work Mode Single pulse Double pulse Long pulse Energy of 1064nm 100-600mJ 100-1200mJ 100-1000mJ Energy of 532nm 100-300mJ 100-600mJ N Frequency 1-10Hz 1-5Hz 1-5HzBeijing Sincoheren Science and Technology Development Co., Ltd. Q-Switched Nd: YAG Laser TherapySystems File No.: XKYR-SM-A/1-1A09-02 25 symptoms, please set the wavelength according to the clinical requirements. ⚫ Fluence: the laser energy at the specific spot size. The fluence is only for indication and can not be adjusted. ⚫ Spot size: the spot size is the diameter of the output laser spot at the end of the handpiece. It could be adjusted from 2~10mm, step is 1mm. Turn the knobs at the handpiece could set spot size, it will display the numbers on the handpiece, and the spot size will displayed on the screen synchronously. According to the spot size, the fluence will be changed too. ⚫ Counter: The total laser output numbers at this start up, it will clear automatically after power off. It can be cleared manually by pressing . ⚫ Standby: At Standby status, the system can not emit laser. ⚫ Ready: Press Ready button, the system will prepared for laser emitting. Once stepped on the foot switch, the laser will emitted according to the set parameters. ⚫ Setting: Press , the system will enter the setting interface as shown in picture 5.

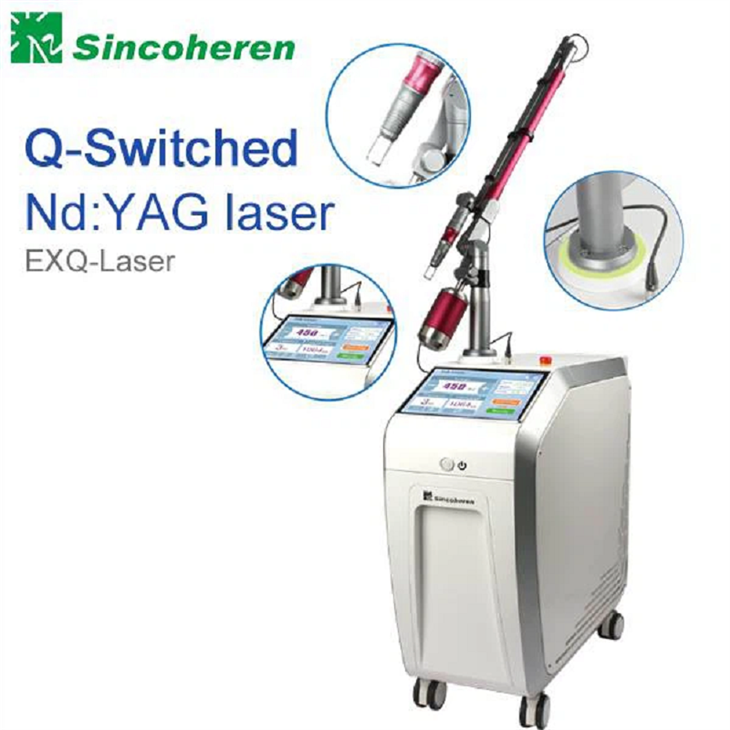

Multi-functional Medical CE TGA ISO13485 EX-QLASER machine for tattoo removal and pigment removal 1064nm 532nm

The Parameters of Nd:YAG Laser
Laser type	Q-Switched Nd:Yag	High Energy Q-Switched Nd:Yag
Wavelength	1064nm/532nm	1064nm/532nm
Pulse Width	5ns	5ns
Pulse Energy	500mJ/200mj	1000mj/500mj
Pulse Energy Range	200-500mJ/100-200mJ	100-1000mJ/100-500mJ
Frequency	5Hz	5Hz
Spot Size	2-10mm Adjustable	2-10mm Adjustable
Fluence	0.2-16J/cm² / 0.1-6.3J/cm²	1.3-32J/cm² / 0.6-16J/cm²
Electrical Requirements		110-240VAC 50-60Hz 1200VA
Dimension		351mm925mm775mm(without optical articulated arm)
Net Weight		80 Kg
