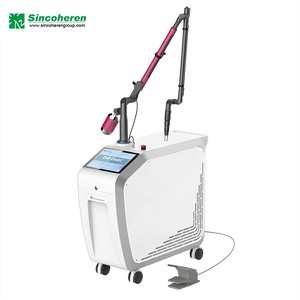

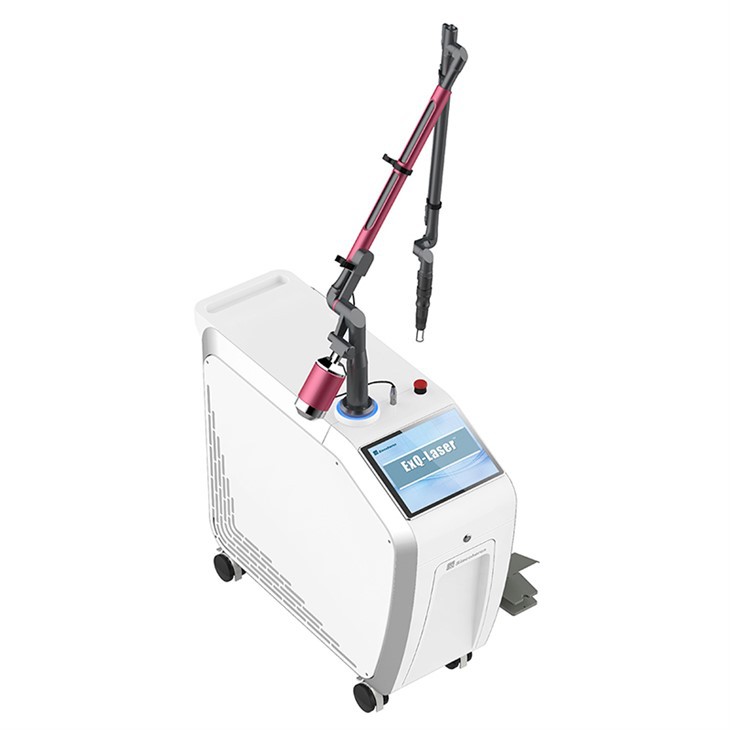

2022 Popular Yag Nd Tattoo Removal Pigment Removal Sun Spot Removal Laser

1. Dimensions (without articulated arm, Width×Length×Height): 370 mm ×957 mm  ×992 mm； 2. Total weight(include articulated arm): <80kg; 3. Power input: 1200VA; 4. Rated current of leakage:10A; 5. Repetition Rate: 1-10Hz; 6. Nominal ocular hazard distance: NOHD 3.3km,  Note: operation shall be in a closed room and make sure to wear goggles!Beijing Sincoheren Science and Technology Development Co., Ltd. Q-Switched Nd: YAG Laser TherapySystems File No.: XKYR-SM-A/1-1A09-02 18 7. cooling system: built-in closed circulating water cooling; 7.1.2 Photoelectric property 1.Laser output mode: Q-switched pulse;  2.Laser wavelength: 1064/532nm； 3.Pulse Duration: Q-switched model : 5ns±1ns; Long pulse model : 200us 4.Maximum pulse energy in the end of articulated arm: 1200mJ@1064nm； 600mJ@532nm； 5.Error of laser output energy: ≤±20%; 6.Spot size:2-10mm continuously adjustable, error less than ±20%; 7.aiming beam wavelength: 635 nm; output power Pc shall be 0.1mW≤Pc≤5mW; 8.The distance between spot center and aiming beam center ≤0.5mm

Prepare 4L deionized water or pure water. Water filler is located at the back of Device.  Plug the funnel with CPC coupling inserts into the CPC coupling body at the back of the  system. Power off the system,adding water through the funnel in to the system. While  adding water, observe the water level indicator on the side of equipment, do not make the  water exceed the maximum level. Tap water or mineral water is forbidden. Turn on the  power and launch the equipment, leave the water cooling operates for 1 minute and  adding water inlet is completed. During the system working, observe the water level. If it  becomes lower, it is suggested to add more water. It is suggested Change the water every  three month.
