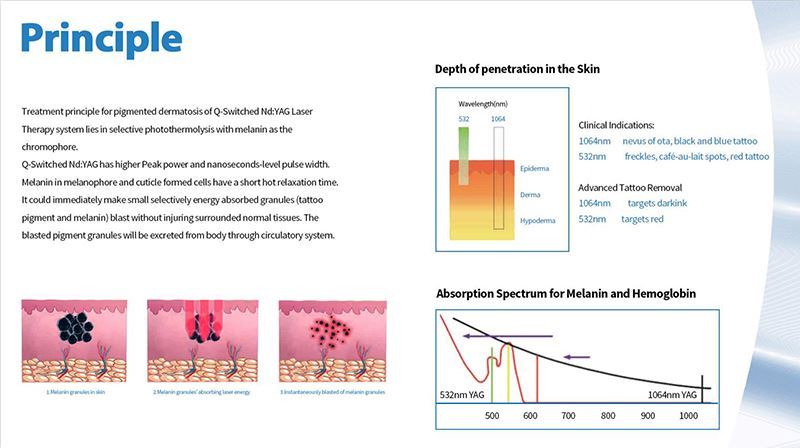

Q-switched Nd:yag laser makes the peak power increase, with the characteristics of high strength and low energy. When 1064nm laser passes through a KTP crystal, the frequency-doubled effect is obtained and the 532 nm laser is produced. • The wavelength of 1064nm can be well absorbed by melanin, which selectively makes small heat-absorbing particles (tattoo ink, melanin, etc.) suddenly heated and damaged. Meanwhile, it does not damage the surrounding tissues and has a good effect on the deep blue and melanin lesions, such as naevus fusconceruleus, nevus of Ota, bad tattoo, tattoo eyebrow. However, the curative effect on epidermal pigmented diseases is poor
Share:

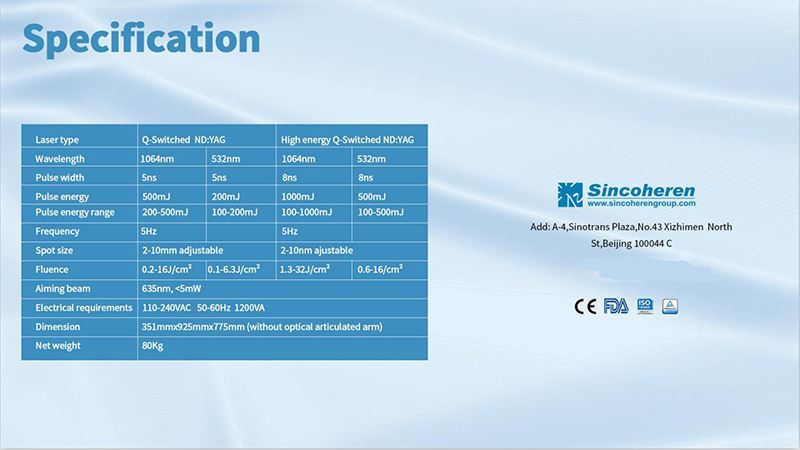

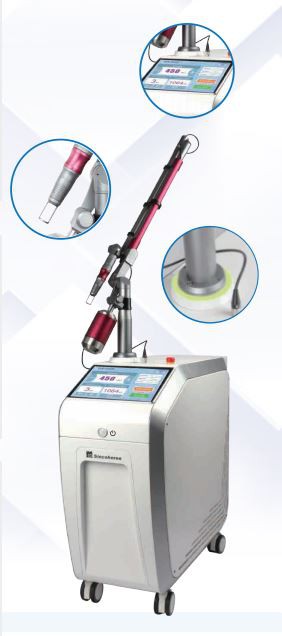

ExQ-Laser™ is newly released Q-Switched Nd:YAG laser therapy system. The system has an optimal clinical treatment effect with following parameter designs: dual-wavelength switching of 1064nm & 532nm, pulse width short to 5ns and Energy output up to 1000mJ.

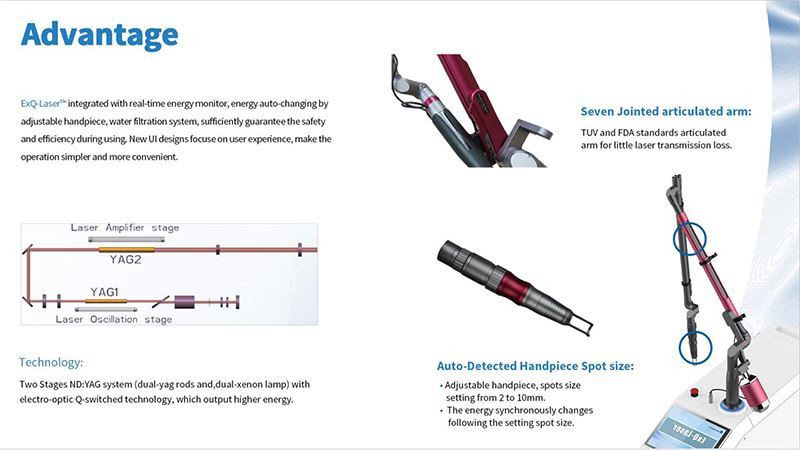

ExQ-Laser™ integrated with real-time energy monitor, energy auto-changing by adjustable handpiece, water filtration system, sufficiently guarantee the safety and efficiency during using. New UI designs focuse on user experience, make the operation simpler and more convenient.
ExQ-Laser™ is safety and reliable with excellent performance, has successively achieved Certificates from CFDA , Medical CE and Australian TGA .Its unique designs also earn multiple global patents.

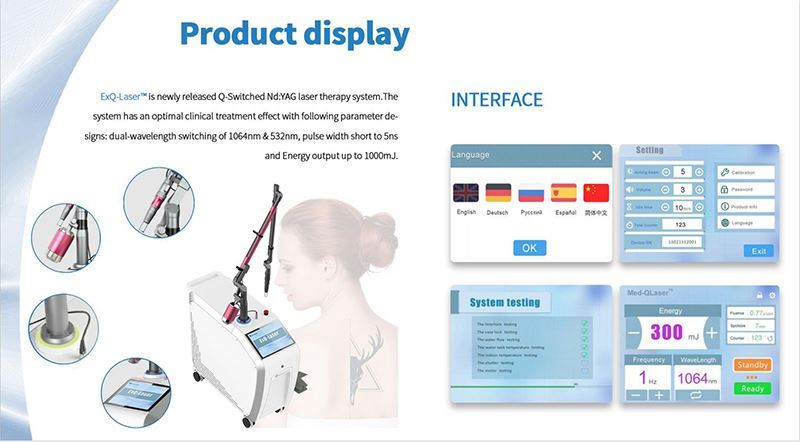

*12 Inch Intuitive Full Size Touch Screen
*Virtually Flat Top Beam For Minimal Side Effects
*Real-Time Energy Monitor & Auto-Calibration System
*Pulse Width Down To 5ns As Lutronic, Alma Laser And Luminues
*Adjustable Spot Size 2-10mm
*Water Filtration System
*Self-Testing System For Online Trouble Shooting
