CE approved Q-Switched Laser Tattoo Removal hollywood facial and skin rejuvenataion Machine with local training and warranty in Europe
  • /uploads/202134052/small/q-switched-laser-tattoo-removal-machine05177798916.jpg
  • /uploads/202134052/small/q-switched-laser-tattoo-removal-machine05180298564.png
  • /uploads/202134052/small/q-switched-laser-tattoo-removal-machine05181861747.png
  • /uploads/202134052/small/q-switched-laser-tattoo-removal-machine05183103472.jpg

CE approved Q-Switched Laser Tattoo Removal hollywood facial and skin rejuvenataion Machine with local training and warranty in Europe

Advantages: 1.Flat-top hat Beam 2.7 joint articulate arm&10.4 touch display 3.Real-time energy monitor& Auto-Cali-bration System 4.Energy density is automatically adjustedwith spot size 5.Short pulse duration 5ns 6.Adjustable spot size 2-10mm 7.Stable power supply with High peak power 8.Water Filtration System 9.7*24 hour service/ Immediate help offered from the office located in The United States, Europe, and Australia. 10. 20 years of experience in Aesthetics equipment production and export. 11. Oem customized service, including software interface and body screen printing, color, etc. 12. Imported technologies and parts.

Share:

Product Details


CE approved Q-Switched Laser Tattoo Removal hollywood facial and skin rejuvenataion Machine with local training and warranty in Europe


WITH US YOUR MONEY IN SAFE, YOUR BUSINESS IN SAFE

What our clients can enjoy from us

1. Free Onsite training and after sale service in UNITED KINGDOM, UNITED STATES, AUSTRALIA, GERMANY.

2. MEDICAL TUV CE+TGA APPROVED QUALITIFIED MACHINE AND COMPANY.

3. Free personalized branding OEM / ODM SERVICE.

4. TWO YEARS WARRENTY and ONE MONTH FULL REFUND

5. Free Marketing poster/brochure/package treatment suggestion








About our machine

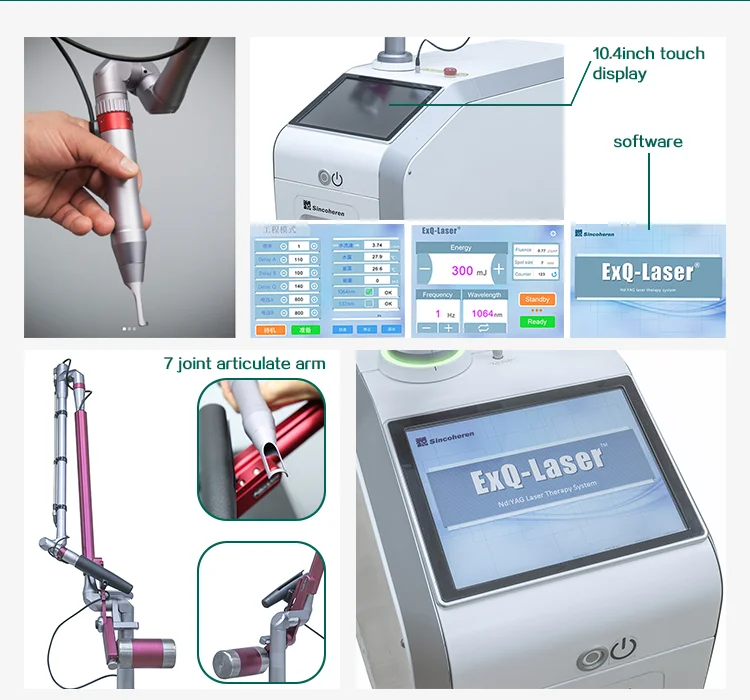

1.Flat-top hat Beam


2.7 joint articulate arm&10.4 touch display

3.Real-time energy monitor& Auto-Cali-bration System

4.Energy density is automatically adjustedwith spot size

5.Short pulse duration 5ns


What's Q-Switched Laser?

Q-switched Nd:yag laser makes the peak power increase, with the characteristics of high strength and low energy. When 1064nm laser passes through a KTP crystal, the frequency-doubled effect is obtained and the 532 nm laser is produced.

The wavelength of 1064nm can be well absorbed by melanin, which selectively makes small heat-absorbing particles (tattoo ink, melanin, etc.) suddenly heated and

damaged. Meanwhile, it does not damage the surrounding tissues and has a good

effect on the deep blue and melanin lesions, such as naevus fusconceruleus, nevus of Ota, bad tattoo, tattoo eyebrow. However, the curative effect on epidermal

pigmented diseases is poor.

• The wavelength of 532 nm can be strongly absorbed by red and brown

pigment, and it has good effect on superficial pigment diseases, such as

coffee spot, senile plaque, sunspot, freckle.

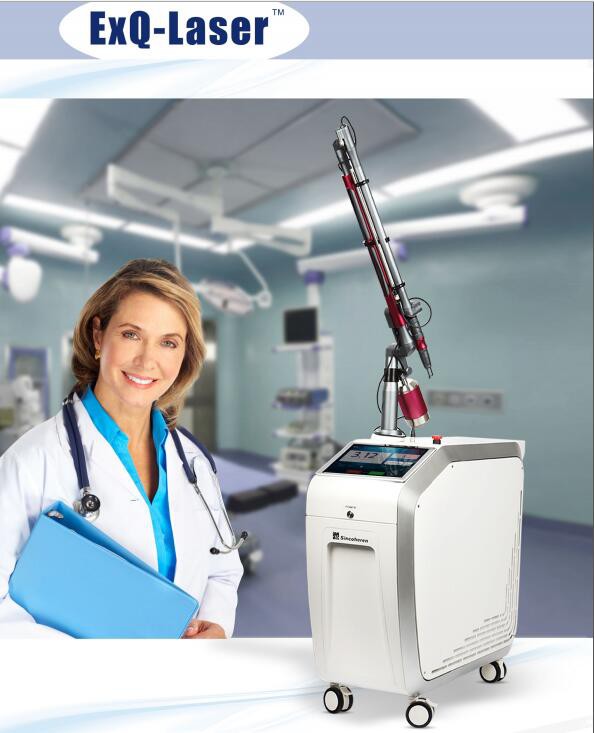

FAQ and CE approved Q-Switched NdYAG Laser Tattoo Removal and pigment removal Machine with 1064nm and 532nm picosure

Working Principle
Treatment principle for pigmented dermatosis of Q-Switched Nd:YAG Laser Therapy system lies in selective photothermolysis with melanin as the chromophore. Q-Switched Nd:YAG has higher Peak power and nanoseconds-level pulse width. Melanin in melanophore and cuticle formed cells have a short hot relaxation time. It could immediately make small selectively energy absorbed granules (tattoo pigment and melanin) blast without injuring surrounded normal tissues. The blasted pigment granules will be excreted from body through circulatory system.

Advantages:

1.Flat-top hat Beam

2.7 joint articulate arm&10.4 touch display

3.Real-time energy monitor& Auto-Cali-bration System

4.Energy density is automatically adjustedwith spot size

5.Short pulse duration 5ns

6.Adjustable spot size 2-10mm

7.Stable power supply with High peak power

8.Water Filtration System

9.7*24 hour service/ Immediate help offered from the office located in The United States, Europe, and Australia.

10. 20 years of experience in Aesthetics equipment production and export.

11. Oem customized service, including software interface and body screen printing, color, etc.

12. Imported technologies and parts.


Product Description
Sinco Q Switched is newly released Q-Switched Nd:YAG laser therapy system.
It integrated with real-time energy monitor, energy auto-changing by adjustable handpiece, water filtration system, sufficiently guarantee the safety and efficiency during treatment. New UI designs focus on user experience which making the operation simpler and more convenient.

Laser type
Q-Switched Nd:YAG
Wavelength
1064nm  532nm
Pulse width
5ns   5ns
Pulse energy
500mj   200mj
Pulse energy Range
200-500mj   100-200mj
Frequency
5HZ
Spot size
2-10mm adjustable
Electrical
100-240VAC 50-60HZ 1200VA
Dimension
35.1cm*92.5cm*77.5cm
Net weight
40KG



Indications:

1.Melasma/HyperpigmenatonLentignos/Speckle/Tattoo Removal etc.

2.Carbon peeling skin rejuvenation

3.Port wine birthdaymarks/Spider angio-ma/Cherry angioma Spider nevi etc.

Balance uneven skin tones/Shrink pores

FAQ and CE approved Q-Switched NdYAG Laser Tattoo Removal and pigment removal Machine with 1064nm and 532nm  applications

Notes

• In the use of the machine, doctors should flexibly adjust parameters according to the actual situation: individual differences (such as patient tolerance) treatment response, etc. Before using it, Skin tests should be performed to avoid accident.

For several treatments, the treatment should start with low energy, and increase it step by step. The doctor adjust the parameters in time according to the patient's response

Method of Operation

Skin must be thoroughly cleaned before operation. On the one hand is to avoid residual cosmetics blasting during the treatment, on the other hand is that some areas require 3 to 7 days to stay free of water after treatment.

Alcohol or iodophor cotton ball, saline, sterile gauze, and disposable ice bag should be prepared before operation. The application of anesthetic usually takes 30 min-50 mins.

Removing the anesthetic and wiping skin with saline cotton ball before treatment.

The patient needs a lying position. Using saline gauze to cover eyes or wearing eye masks directly to avoid damage to eyes caused by laser misfire.

Turn on the machine. Firstly, select the wavelength according to the disease to be

treated. Then adjust the spot size on the handpiece, and set the parameters of energy,

frequency. Finally, start treatment.

The light is completely controlled by the foot switch, so the operator should be careful when pressing Ready. He should master the rhythm of the treatment so as

not to damage normal tissue by the laser.

Operators also should protect themselves, especially using Q532 nm green light, he must use protective goggles. In the treatment, the hands should be perpendicular to the healing skin area. Try to use low frequency (except for full face treatment). Try not to overlap treatment to prevent energy accumulation.

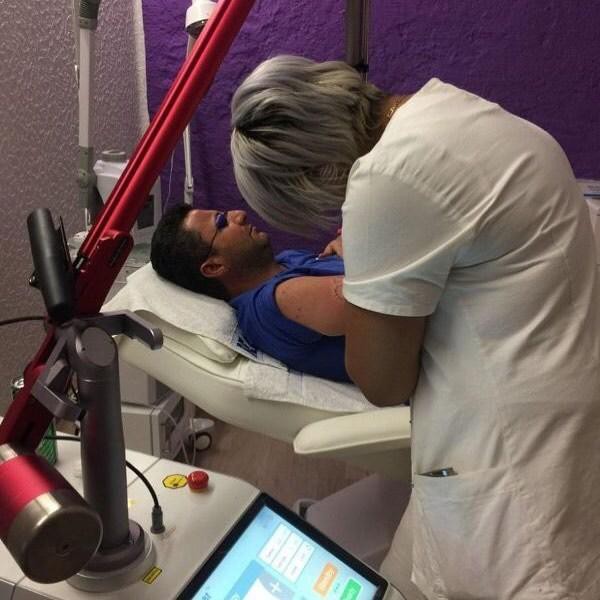

 FAQ and CE approved Q-Switched NdYAG Laser Tattoo Removal and pigment removal Machine with 1064nm and 532nm USA

Postoperative Considerations

It is very important to do local cold compress after operation. Pay attention to the aseptic gauze in the place where the ice bag touches the operation area. Cold

compress for more than 30 minutes will reduce the occurrence of blisters after operation.

Using antibiotic ointment (generally erythromycin eye ointment) in the operative area to prevent infection. If scab forms, the patient must pay attention to avoid touching water and keeping it dry. The scab should be natural exfoliation, and not be forcibly removed.

It is very important to pay attention to sun protection after treatment. Good therapeutic effect is the combination of reasonable treatment parameters and

postoperative maintenance.

One week after the operation, the scab should naturally fall off. At this time the patient can use physical sun protection, such as using sun umbrella. Do not use

erosive products, such as keratolytics or efficacy products one month after treatment.

After the scab falls off, the patient should apply the sunscreen with SPF30+ when he goes out.





Highly dermatologists recommended post laser skin care products. Tiferono.

ND YAG Q SWITCHED after treatment care products Tiferono by fotromed(1)



Efficacy


The Parameters of Nd:YAG Laser

Laser Type

Q-Switched Nd:Yag

High Energy Q-Switched Nd:Yag

Wavelength

1064nm

532nm

1064nm

532nm

Pulse Width

5ns

5ns

8ns

8ns

Pulse Energy

500mJ

200mJ

1000mJ

500mJ

Pulse Energy Range

200-500mJ

100-200mJ

100-1000mJ

100-500mJ

Frequency

5Hz

5Hz

Spot Size

2-10mm Adjustable

2-10mm Adjustable

Fluence

0.2-16J/cm²

0.1-6.3J/cm²

1.3-32J/cm²

0.6-16J/cm²

Aiming Beam

635nm, 5mW

Electrical  Requirements

110-240VAC 50-60Hz  1200VA

Dimension

351mm*925mm*775mm(without optical articulated arm)

Net Weight

80 Kg



Item

EXQ-Laser

Others

Power supply

TDK from Japan

China

Pump delivery

15m

2.5m

Power input

Wide range power input

Single power input

Lamp

Medical grade Imported from Japan

China

Switch

Medical grade imported from Japan

China

Cord connectors

Medical grade imported from Switzerland

China

PFC modular

Yes-power stabilizer, and 10% energy saving than normal ones

NO
