YAG Laser, the laser lights permeate through the epidermis into dermis and take effects on pigment mass. The laser energy is absorbed by the pigment.
Share:
What is ExQ-Laser?

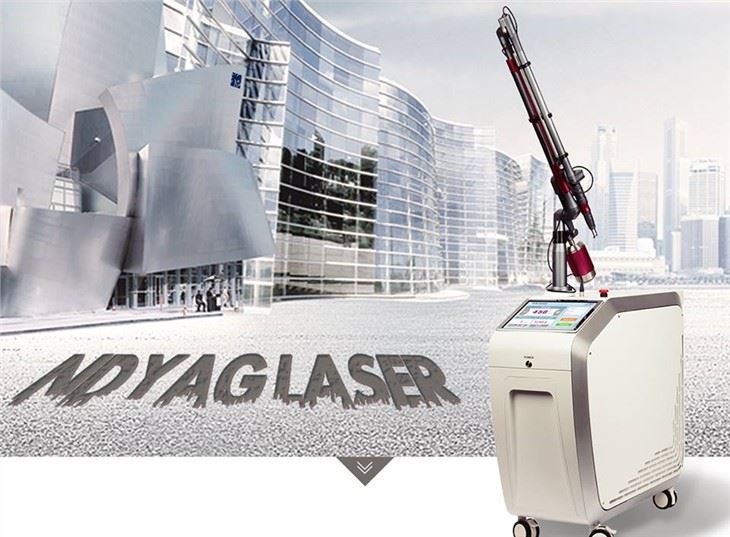

ExQ-Laser is newly released Q-Switched Nd:YAG laser therapy system.The system has an optical clinical tereatment effect with following parameter designs:dual-wavelength switching of 1064nm & 532nm,pulse width short to 5ns and Energy output up to 1000mJ.
Specification:
| Laser type | Q-Switched Nd:Yag | High Energy Q-Switched Nd:Yag | ||
| Wavelength | 1064nm | 532nm | 1064nm | 532nm |
| Pulse Width | 5ns | 5ns | 8ns | 8ns |
| Pulse Energy | 500mJ | 200mJ | 1000mJ | 500mJ |
| Pulse Energy Range | 200-500mJ | 100-200mJ | 100-1000mJ | 100-500mJ |
| Frequency | 5Hz | 5Hz | ||
| Spot Size | 2-10mm adjustable | 2-10mm adjustable | ||
| Fluence | 0.2-16J/cm² | 0.1-6.3J/cm | 1.3-32J/cm² | 0.6-16J/cm² |
| Electrical Requirements | 110-240VAC 50-60Hz 1200VA | |||
| Size /Net weight | 351mm*925mm*775mm(without optical articulated arm) / 80Kg | |||
Principle:
Treatment principle of Monaliza-2 Q-Switched Nd: YAG Laser Therapy Systems is based on laser selective photothermy and blasting mechanism of Q-switched laser. Energy form particular wavelength with accurate dose will act on certain targeted color radicals: ink, carbon particles from derma and epidermis, exogenous pigment particles and endogenous melanophore from derma and epidermis. When suddenly being heated, Pigment particles immediately blast into smaller pieces, which will be swallowed by macrophage phagocytosis and enters into lymph circulation system and finally be discharged out of body.
Application
■ 532nm is for red brown ink tattoo removal re­moval, pigments removal ( freckles removal, sun spots removal, ages removal and ect.)
■ 1064nm is for blue green black ink tattoos re­moval, permanent makeup removal, eye­brows, eyeliners, lipliners and ect.
■ 1320nm is for carbon facial peeling, for skin re­juvenation, skin shining, [pores shrinking.
Also can treat nail fungus.
Advantages:
Patented technology with FDA ,Medical CE,ISO13485 and TGA.
System:
■Two Stages ND:YAG system(double rods and double xenon lamp)with higher energy output,and make the pulse width as short as 5ns,get doubled output density under the same energy.
■Fat-Top Beam output,uniformly distributed spot energy without any heat point,achieve better treatment effect and less injuries.
■Real-time energy monitor & Auto-Calibration System provides consistent and stable energy output.
■Infrared ray aiming: imported infra-red indicator greatly increases the spot accuracy and the efficiency, saving cost accordingly.
■ Multilingual arbitrary languages selective.

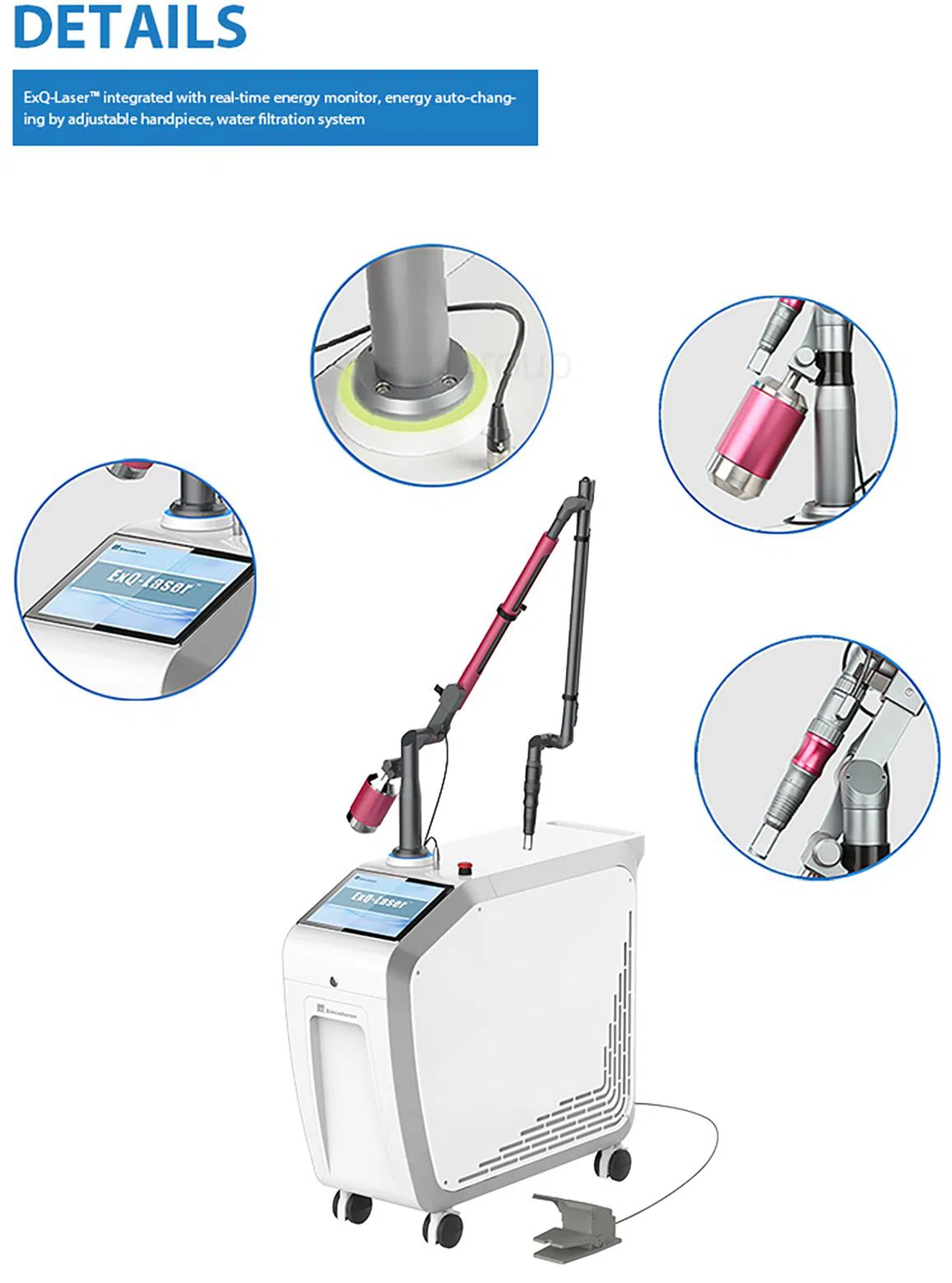

Handpieces:
■ Auto-Detected Handpiece Spot size:Adjustable handpiece,spot size setting from 2 to 10mm.The energy synchronously changes following the setting spot size.
■ New High power handpiece, strong output energy.
- Integrated laser cavity, anti-vibration and anti-swing, no beam deflection.
— 8.4 inch LEE), screen free to add logo.
■ Pluggable handle piece.
■ Seven Jointed Articulated arm from Korea with low optical loss,low maintenance,high stability and long lifetime.
■ Adopt UK imported lamp with original packaging, Greatly improve the whole life.
■ Adopt special diffuse reflection cavity, high reflection efficiency, high power endurance.

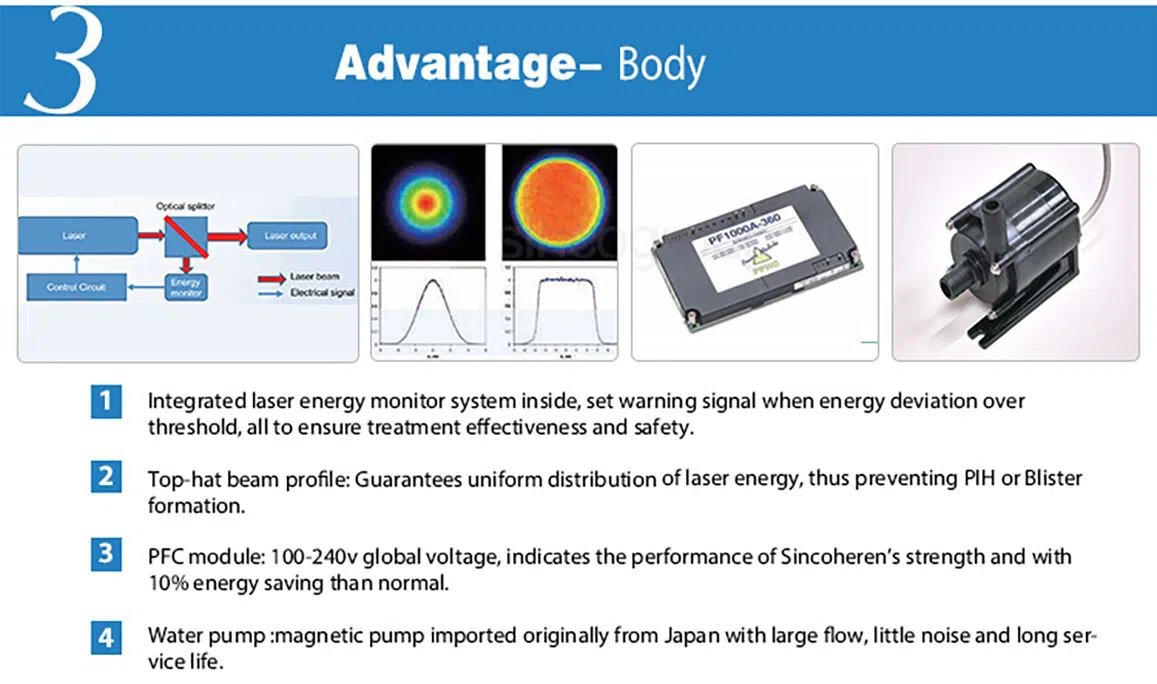

Body:
■ Integrated laser energy monitor system inside,,set warning signal when energy deviation over the shold,all to ensure treatment effectiveness and safety.
■ Top-hat beam profile:Guarantees uniform distribution of laser energy,thus preventing PIH or Blister formation.
■ PFC module :100-240v global voltage,indicates the performance of Sincoheren's strength and with 10% energy saving than normal.
■ Water pump :magnetic pump imported originally from Japan with large flow,little noise and long service life.
