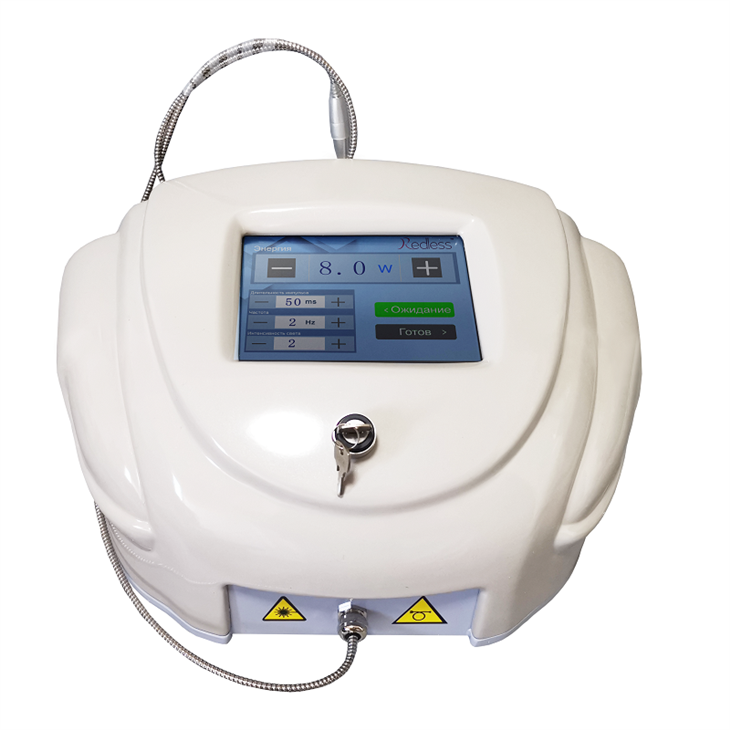

Laser Machine 980 For Spider Vein Removal

980nm diode laser spider veins removal machine(SDL-G Model)

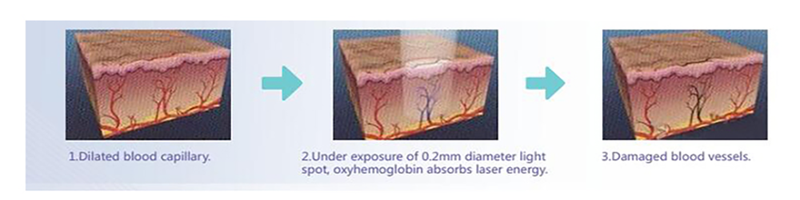

Working Theory

980nm laser is the optimum absorption spectrum of porphyrin vascular cells. Vascular cellsabsorb the high-energy laser of 980nm wavelength, solidification occurs, and finally dissipated.To overcome the traditional laser treatment redness large area of burning the skin, professionaldesign hand-piece, enabling the 980nm laser beam is focused onto a 0.2-0.5mm diameter range, inorder to enable more focused energy to reach the target tissue, while avoiding burn the surroundingskin tissue.Laser can stimulate the dermal collagen growth while vascular treatment, increase epidermalthickness and density, so that the small blood vessels are no longer exposed, at the same time, theskin's elasticity and resistance is also significantly enhanced.

Advantages

1. Small design (low shipping cost)

2. Big color touch screen

3. 100% import optical fiber

4. 100% import laser generator

5. Smart operation program

6. Painfree and no downtime

Applications

* Laser Spider Vein Removal

* Vascular Removal

* Varicose Veins Removal

* Nevus Flammeus Removal

* Cherry Haemangioma Removal

* Rosacea Removal

* Vascular LesionTherapy* EVLT (Endovenous Veins Laser Treatment)

Specification

Laser Type	Diode laser
Laser Wavelength	980nm
Laser Classification	Class 4
Electric Safety Classification	Type B ClassⅠ
Laser Model	Pulser
Laser Power	16W Max. or 10W Max
Laser Energy	0.1-11.4J or 0.1-6.6J
Pulse Width	10-650ms
Pulse Frequency	1Hz-10Hz
Spot Size	φ0.2mm
Beam Delivery	Fiber of 200μm, SMA 905 connector
LCD screen	8 inch
Aiming Beam	650 nm, ＜5mW
Power supply	110-240VAC,50-60Hz, 200VA
Fuse Protector	F3A,250VAC
Dimensions (Length ×Width ×Height)	325mm×470mm×23
Net Weight	8KG

Before and After
